- AC Filter Capcitor

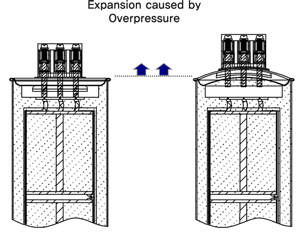

- AC-Filter capacitor are constructed with self-healing metallized polypropylene, delta connected internally for 3-phase operation and packaged in a cylindrical metal case and safety protected with an internal pressure interrupter that disengages all 3 phases in the event of capacitor overload or end of life
- - High RMS current rating
- High capacitance values
- Quick connection point
- safe pressure interrupter
- High reliability and life expectancy
-
Capacitorance range 4.7㎌ × 3 to 100㎌ × 3 Rated DC voltage(UN) 450Vrms to 1000Vrms Applicable Standard IEC 61071-1, Opitional IEC 61881, IEC 60831
-
Location In door Operating temperature -40℃ to +85℃ Capacitance tolerance ±5%, ±10% Max over voltage 1.1 × UN : 30% of on-load duration 1.15 × UN : 30min 1.2 × UN : 5min 1.3 × UN : 1min 1.5 × UN : Below 30ms / 1,000 times on life time Dielectric Metallized polypropylene, SH type Dielectric dissipation factor(tang) < 2 × 10-4 Voltage test Between terminal : 1.5 × UN during 10s (at 25℃) Betwwen terminals and case : 3kVac during 10s (at 60Hz, 25℃) Case Aluminum can /Screw down terminals Filler Capacitor Oil, Non-PCB Internal protection device Overpressure interrupter device Lifetime expectancy 100,000 hrs (Rated voltage and < 70℃ Hotspot -
- Type
- Temperature
- Voltage- M6 = 4Nm
- M8 = 8Nm
- M12= 15Nm- Capacitance
- LOT No.
- Manufacture date
- Applicable standard- Screw down Terminal =3Nm
-

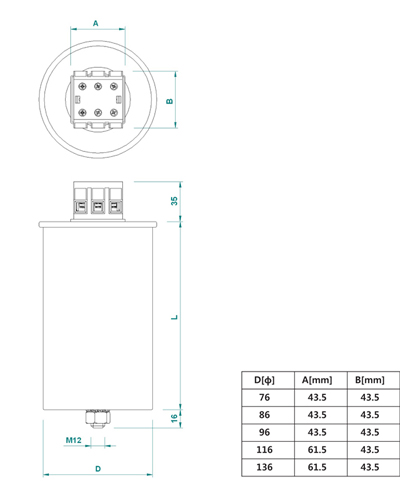

Vrms VAC Vsurge Type No. CN ESR Rth Imax IPeak Isurge ESL Dimensions[mm] Weight [Vrms] [VAC] [V] [㎌] [㏁] [℃/W] [Arms] [kA] [kA] [nH] [D] [L] [㎏] 450 640 1350 QMC-A45033T 33×3 1.2×3 4.7 43×3 0.9 2.7 90 76 165 0.9 QMC-A45040T 40×3 1.2×3 4.7 43×3 1.1 3.3 130 76 165 0.9 QMC-A45046T 46×3 1.1×3 4.1 43×3 1.3 3.9 110 86 170 1.2 QMC-A45051T 50×3 1.1×3 4.1 43×3 1.4 4.2 140 86 170 1.2 QMC-A45057T 57×3 0.8×3 3.7 43×3 1.6 4.8 120 96 165 1.3 QMC-A45068T 68×3 0.8×3 3.7 43×3 2.0 6.0 100 96 165 1.3 QMC-A45080T 80×3 0.6×3 3.0 55×3 2.5 7.5 100 116 165 2.4 QMC-A45100T 100×3 0.4×3 3.0 55×3 3.0 9.0 100 116 165 2.6 QMC-A45135T 135×3 0.6×3 2.1 80×3 2.5 7.5 120 116 230 3.0 QMC-A45200T 200×3 0.6×3 1.8 80×3 3.5 10.5 125 136 230 3.9 530 750 1600 QMC-A53023T 23×3 1.2×3 4.7 43×3 0.8 2.5 100 76 165 0.9 QMC-A53030T 30×3 1.2×3 4.1 43×3 1.1 3.3 120 86 170 1.2 QMC-A53038T 38×3 0.8×3 3.7 43×3 1.4 4.2 120 96 165 1.3 QMC-A53100T 100×3 0.6×3 2.1 80×3 2.2 6.6 120 116 230 3.0 600 850 1820 QMC-A60014T 14×3 1.3×3 4.7 43×3 0.6 1.8 130 76 165 0.9 QMC-A60019T 19×3 1.2×3 4.7 43×3 0.7 2.2 100 76 165 0.9 QMC-A60025T 25×3 1.1×3 4.1 43×3 1.0 3.0 100 86 170 1.2 QMC-A60038T 35×3 0.8×3 3.7 43×3 1.5 4.5 100 96 165 1.3 QMC-A60050T 50×3 0.7×3 3.0 55×3 2.0 6.0 100 116 165 2.6 760 1080 2300 QMC-A76010T 10×3 1.2×3 4.7 43×3 1.1 3.3 120 76 165 0.9 QMC-A676017T 17×3 0.7×3 3.7 43×3 1.9 5.7 130 96 165 1.3 QMC-A76027T 27×3 0.4×3 3.0 55×3 3.1 9.3 120 116 165 2.4 QMC-A76049T 49×3 0.6×3 2.1 55×3 3.2 9.6 120 116 230 3.0 QMC-A76055T 55×3 0.4×3 2.1 55×3 5.0 15 130 136 230 3.9 850 1200 2580/td> QMC-A85008T 8×3 1.3×3 4.9 43×3 1.0 3.0 120 76 165 0.9 QMC-A85012T 12×3 1.1×3 4.3 43×3 1.5 4.5 120 86 170 1.2 QMC-A85025T 25×3 0.4×3 3.2 55×3 3.2 9.6 130 116 165 2.6 QMC-A85041T 41×3 0.6×3 2.1 55×3 3.0 9.0 120 116 230 3.0 QMC-A85055T 55×3 0.5×3 1.8 80×3 3.5 11.0 130 136 230 3.9 1000 1400 3000 QMC-A10011T 11×3 0.5×3 3.0 55×3 2.0 6.0 130 116 165 2.4 QMC-A10033T 33×3 0.6×3 1.8 55×3 3.0 9.0 120 136 230 3.9 1200 1700 3600 QMC-A12012T 12×3 1.0×3 2.6 55×3 1.3 3.9 140 96 230 2.7 QMC-A12022T 22×3 0.6×3 1.8 55×3 2.3 6.9 120 136 230 3.9
