- DC Link Capcitor
- DC Link capacitor can be universally used for the assembly of low inductance DC buffer circuits and DC filtering, smoothing.
They are Metallized polypropylene(SH-type) dielectric and Aluminum cylindrical case filled Dry resin(UL94, V0)
- - High RMS Current rating
- High impulse current rating
- Low self - inductance (ESL)
- Low series resistance (ESR)
- High reliability and life expectancy
-
Capacitorance range 90㎌ to 7400㎌ Rated DC voltage(UN) 600VDC to 3000VDC Applicable Standard IEC 61071-1, Opitional IEC 61881
-

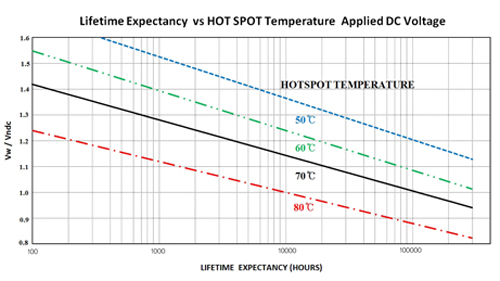

Location In door Operating temperature -40℃ to +85℃ Max over voltage 1.1 × UN : 30% of on-load duration 1.15 × UN : 30min 1.2 × UN : 5min 1.3 × UN : 1min 1.5 × UN : Below 30ms / 1,000 times on life time Dielectric Metallized polypropylene, SH type Dielectric dissipation factor(tang) < 2 × 10⁴ Voltage test Between terminal : 1.5 × UN during 10S (at 25ⓐ℃) Betwwen terminals and case : 3kVac during 10s (at 60Hz, 25℃) Case Aluminum can / Plastic cap Filler Resin, Dry(UL 94,V0) Internal protection device None Lifetime expectancy 100,000 hrs (Rated voltage and < 70℃ Hotspot -
- Type
- Temperature

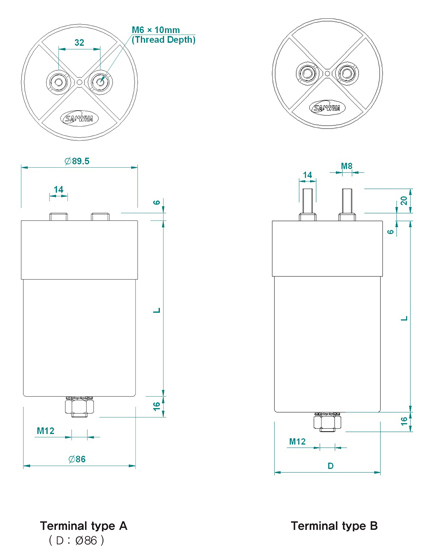

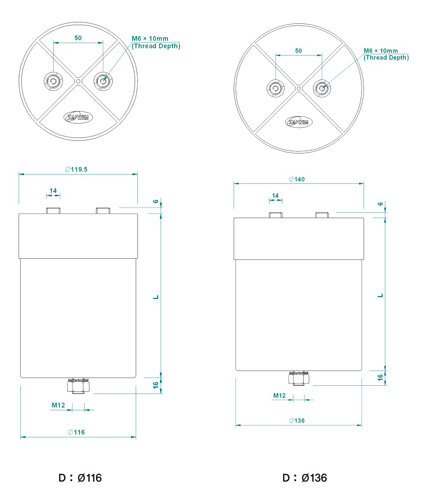

- Voltage- M6 = 4Nm
- M8 = 8Nm
- M12= 15Nm- Capacitance
