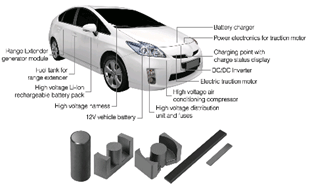

Automotive

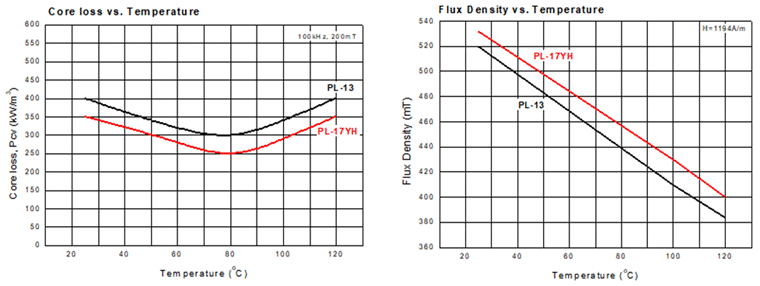

LDD, OBC for HEV, PHEV, EV, FCEV

- Materials: PL-13, PL-17YH

- Characteristic: Low loss at wide temperature.

- Core shape: EER, PQ, PEI, UI, UU Type

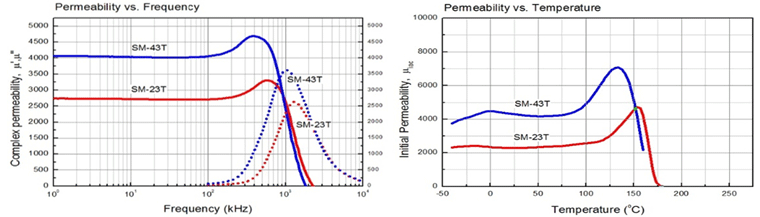

LF Antenna for Smart Key

- Materials: SM-23T, SM-43T

- Characteristic: Stable Permeability under wide temperature ranges(-40~85℃)

- Core shape: BAR Type(SD)


Characteristics				PL-13	PL-17YH


U_lac			25℃	3200±25%	3300±25%

Bs	mT	1㎑, 1200A/m	25℃	520	530

			100℃	410	420

Pcv	㎾/㎥	100㎑, 200mT	25℃	400	350

			80℃	300	280

			100℃	340	310

			120℃	400	350

TC	℃			＞220	＞230

P	Ωm			7	7

Ds	㎏/㎥			4.90×10³	4.90×10³


Characteristics			SM-13T	SM-43T

Uiac			2300±25%	4300±25%

	×10^-6>	f:100㎑	＜3	＜5

Bs	mT	25℃	460	450

∝ur		-30~20℃	-0.5~0.5	-0.5~0.5

	×10^-6/℃	0~20℃	-0.5~0.5	0~1.0

		20~70℃	0~1.0	0~1.0

Tc			＞170	＞160

Ds			4.80×10³	4.80×10³

p	Ω.m	25℃	＞7	＞5
