  • - The development of the Radial Type Ultra Low Impedance product (WH Series) PDF
  • • Introduction
  • As efficiency of computers and cellular phone chargers has been improved, electrolytic capacitors which have an excellent impedance characteristic and can be allowed high ripple current are continually needed.

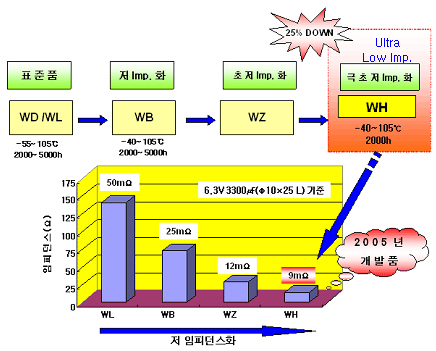

    To meet this kind of requirements, we has developed WH Series which has 25% lower impedance characteristic at 100kHz than existing WZ Series Due to using an electrolyte which has 50% lower resistance than previous electrolyte and low material, WH Series has the best impedance characteristic in korean domestic field and can capacitate a high ripple current at a same size.
  • • Property
  • - Rated Voltage: 6.3V ~ 16V
  • - Nominal Capacitance: 470 ~ 3300㎌
  • - Product Size: Φ8 ~ Φ10
  • - Operating Temp. Range: -40 ~ +105℃
  • - Load Life: 105℃, 2,000hrs
  • • Application
  • - Computer mother board
  • - Cell phone charger, SMPS devices
  • WH Series
